PanBlast Pots For Your Blast Requirements

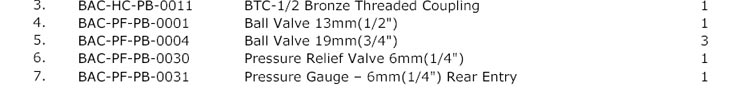

PANBLAST BP110 : Click Here To Download Manual - open with Adobe Acrobat

Capacity 110lb - 40ltr - 50kg

CRV Control Valve

Junior Miser Abrasive Metering Valve

Muffler

Pressure Relief Valve

Pressure Guage

10mtr Twin Control Line

Solid Wheels

CLX Control Handle

The PanBlast BP110-3 Blast Pot is a small, manually operated compact blast pot,

suited to touch up blasting applications, and for use in confined spaces where access

may be restricted.
The BP110-3 features manually operated ball valve system with 19mm (3/4") piping. Abrasive capacity is approximately 31 litres (1.1ft3).

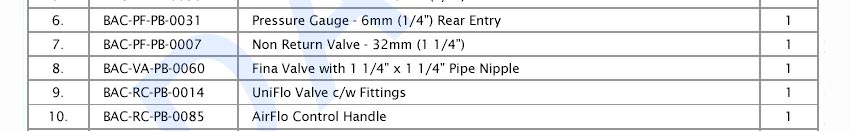

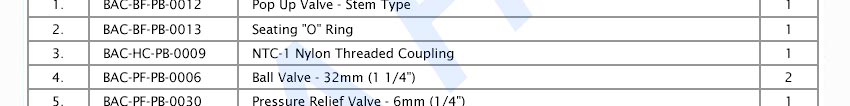

PanBlast BP300 : Click Here To Download Manual - open with Adobe Acrobat

BP300-3 Blast Pot is a mid sized, manually operated blast pot. The BP300-3 features manually operated ball valve system with 32mm (1 1/4") piping. Abrasive capacity is approximately 85 litres (3ft3) All PanBlast Blast Pot shells are designed in accordance with ASME Standards0-3 Blast Pot

TITAN BLASTING HELMET

Manufactured for High Impact Strength

Even Distribution of Incoming Air

Molded Internal Polystyrene Cap

Replaceable foam Padding

Double Layer Viewing Lenses

Nylon Cape for Chest and Waist

Manufactured to Australian Standards

Air Conditioner also Available Separately

UniFlo Valve c/w Fittings:

The PanBlast UniFlo Control Valve is an air operated inlet/outlet valve utilised to control the supply of compressed air to the blast pot. Operation of the UniFlo Control Valve is via a pilot air signal from the operator depressing the PanBlast AirFlo Control Handle.
The PanBlast UniFlo Control Valve is a normally closed style valve, utilising a spring to seal it during its un-activated closed state. Being a one-piece design, the valve is easy to install onto existing equipment and is easily accessable for maintenance, without requiring removal from the blast pot. Fitted with 32mm (1-1/4") inlet/outlet ports and 19mm (3/4") exhaust port.

Garent Cleaner Pow- Air Vac

Abrasive : Garnet- Steel Shot- Natural Stones

Blast Accessories

Airless PUMP
